Integrating IAM Authentication with OCI Database Tools Connections

OCI Database Tools is useful when you want a managed SQL access path to an Oracle Database without opening the database to the public internet. IAM authentication makes that path more interesting: instead of distributing a database password to every developer, you can let OCI issue the database token and map that identity to a global database user.

This post walks through a practical setup:

The official documentation shows the Console flow for integrating IAM authentication with Database Tools. The goal here is to keep the same shape, but make the flow repeatable with the OCI CLI.

Use Case

Assume a bank runs an internal payments platform backed by a private Autonomous Database. The database contains batch status, payment events, settlement references, and operational audit data. During an incident, the production support team may need read-only SQL access to verify whether a payment batch finished or inspect recent event records.

The platform team does not want to share the ADMIN password, create long-lived database passwords for every support engineer, or open database network access from engineer laptops.

The desired model is:

This is not a replacement for database privileges. IAM gets the user to the door; the global database user and grants decide what happens after that.

Architecture

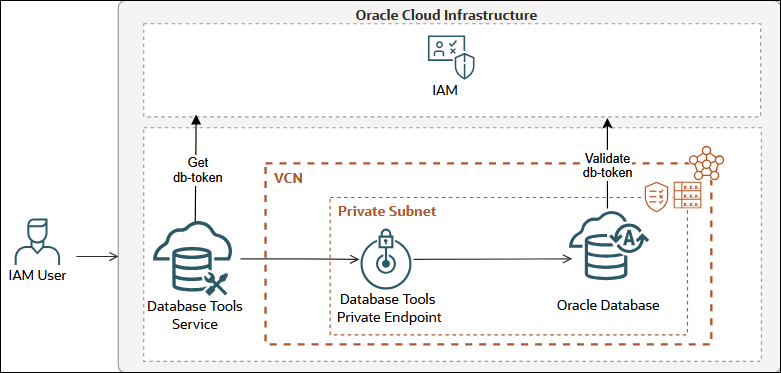

At a high level, the request path looks like this:

IAM authentication flow for OCI Database Tools

The setup uses two Database Tools connections:

  1. adb-support-admin-setup A temporary password-authenticated connection used to create the global database user and enable external authentication.

  2. adb-prod-support-readonly The connection the support team actually uses. It uses token authentication and maps an OCI IAM group to a read-only database user.

Prerequisites

This walkthrough assumes the following already exist:

You also need jq installed locally. The examples use it to build JSON safely instead of relying on fragile shell quoting.

Variables

Replace these values for your environment:

export OCI_CLI_PROFILE="<oci-profile>"
export OCI_CLI_REGION="<oci-region>"
export OCI_CLI_AUTH="<cli-auth>"

export COMPARTMENT_OCID="ocid1.compartment.oc1..example"
export ADBS_OCID="ocid1.autonomousdatabase.oc1..example"
export ADMIN_DB_PASSWORD_SECRET_OCID="ocid1.vaultsecret.oc1..admin-password"
export REGIONAL_WALLET_SECRET_OCID="ocid1.vaultsecret.oc1..regional-wallet"
export PRIVATE_ENDPOINT_ID="ocid1.databasetoolsprivateendpoint.oc1..example"

export DB_TOKEN_SCOPE="urn:oracle:db::id::ocid1.tenancy.oc1..example"
export IAM_GROUP_NAME="prod-db-support-readonly"
export IAM_DB_USER="PROD_SUPPORT_RO"
export ADMIN_CONNECTION_NAME="adb-support-admin-setup"
export IAM_CONNECTION_NAME="adb-prod-support-readonly"

export DB_CONNECT_STRING='(description=(retry_count=3)(retry_delay=3)(address=(protocol=tcps)(port=1522)(host=aaabbccc.adb.us-ashburn-1.oraclecloud.com))(connect_data=(service_name=orders_low.adb.oraclecloud.com))(security=(ssl_server_dn_match=yes)))'

The OCI_CLI_PROFILE, OCI_CLI_REGION, and OCI_CLI_AUTH exports let the examples use the same CLI profile, region, and authentication mode without repeating flags on every command.

For OCI_CLI_AUTH, use the authentication mode that matches your environment. The OCI CLI supports values such as api_key, security_token, instance_principal, instance_obo_user, resource_principal, and oke_workload_identity.

For OCI_CLI_REGION, use a valid OCI region identifier. You can list regions with:

oci iam region list

The DB_TOKEN_SCOPE value is the database token scope expected by the database IAM authentication setup. In many examples it uses the tenancy OCID in this form:

urn:oracle:db::id::<tenancy_ocid>

Step 1: Create the IAM Policy

Create an IAM policy that lets the intended group use Database Tools connections for the target database.

For a public example, prefer a group-based policy:

allow group prod-db-support-readonly to use database-connections in compartment MyComp
  where target.database.id = '<ADBS_OCID>'

For quick testing you may see examples using any-user, but that is broader than most production setups need:

allow any-user to use database-connections in compartment MyComp
  where target.database.id = '<ADBS_OCID>'

Use the narrower policy unless you have a specific reason not to.

Before validating the IAM-authenticated connection, also check the IAM user’s Database Username setting in the OCI Console under User > Saved Password > Database Username. For the shared group mapping used in this post, the value should match the IAM database user name for the user who belongs to prod-db-support-readonly. If you use an exclusive mapping with IAM_PRINCIPAL_NAME, the value must match the IAM user name in that global user mapping. If this value is not set, OCI uses the IAM user’s standard user name as the fallback, which can make validation fail even when the Database Tools connection is otherwise configured correctly.

Step 2: Create the Admin Setup Connection

The first connection uses password authentication with a privileged database user. For Autonomous Database, that is commonly ADMIN. This connection is only for setup.

Build the JSON arguments first:

export KEY_STORES_JSON="$(
  jq -nc \
    --arg walletSecretId "$REGIONAL_WALLET_SECRET_OCID" \
    '[{
      keyStoreType: "SSO",
      keyStoreContent: {
        valueType: "SECRETID",
        secretId: $walletSecretId
      },
      keyStorePassword: null
    }]'
)"

export RELATED_RESOURCE_JSON="$(
  jq -nc \
    --arg adbId "$ADBS_OCID" \
    '{
      entityType: "AUTONOMOUSDATABASE",
      identifier: $adbId
    }'
)"

Create the connection:

export ADMIN_CONNECTION_ID="$(
  oci dbtools connection create-oracle-database \
    --compartment-id "$COMPARTMENT_OCID" \
    --display-name "$ADMIN_CONNECTION_NAME" \
    --connection-string "$DB_CONNECT_STRING" \
    --user-name "ADMIN" \
    --authentication-type PASSWORD \
    --user-password-secret-id "$ADMIN_DB_PASSWORD_SECRET_OCID" \
    --private-endpoint-id "$PRIVATE_ENDPOINT_ID" \
    --key-stores "$KEY_STORES_JSON" \
    --runtime-support SUPPORTED \
    --runtime-identity AUTHENTICATED_PRINCIPAL \
    --related-resource "$RELATED_RESOURCE_JSON" \
    --wait-for-state SUCCEEDED \
    --query "data.resources[0].identifier" \
    --raw-output
)"

Confirm the variable was populated:

echo "$ADMIN_CONNECTION_ID"

Step 3: Create the Global Database User

Create a database user that maps to the IAM group.

export CREATE_IAM_USER_SQL="$(
  jq -nc \
    --arg dbUser "$IAM_DB_USER" \
    --arg iamGroup "$IAM_GROUP_NAME" \
    '{
      type: "STANDARD",
      statementText:
        ("CREATE USER " + $dbUser + " IDENTIFIED GLOBALLY AS '\''IAM_GROUP_NAME=" + $iamGroup + "'\''; GRANT CREATE SESSION TO " + $dbUser + ";")
    }'
)"

oci dbtools-runtime connection execute-sql sync \
  --connection-id "$ADMIN_CONNECTION_ID" \
  --request-input "$CREATE_IAM_USER_SQL"

For a real read-only support use case, grant only the specific objects the support team needs. For example:

GRANT SELECT ON app_owner.payment_batch TO PROD_SUPPORT_RO;
GRANT SELECT ON app_owner.payment_event TO PROD_SUPPORT_RO;

Avoid granting broad roles such as SELECT_CATALOG_ROLE unless the support process explicitly requires it.

Step 4: Enable External Authentication

Enable OCI IAM as the external authentication provider for the database connection.

oci dbtools-runtime property-set update oracle-database-external-authentication-details \
  --connection-id "$ADMIN_CONNECTION_ID" \
  --property-set-key ORACLE_DATABASE_EXTERNAL_AUTHENTICATION \
  --identity-provider '{"type":"OCI_IAM"}' \
  --force

At this point the database has a global user mapping, and the Database Tools connection has external authentication enabled.

Step 5: Create the IAM Authenticated Connection

Now create the connection that uses IAM token authentication.

export ADVANCED_PROPERTIES_JSON="$(
  jq -nc \
    --arg tokenScope "$DB_TOKEN_SCOPE" \
    '{ "iam.db.token.scope": $tokenScope }'
)"

export IAM_USER_CONNECTION_ID="$(
  oci dbtools connection create-oracle-database \
    --compartment-id "$COMPARTMENT_OCID" \
    --display-name "$IAM_CONNECTION_NAME" \
    --connection-string "$DB_CONNECT_STRING" \
    --authentication-type TOKEN \
    --private-endpoint-id "$PRIVATE_ENDPOINT_ID" \
    --key-stores "$KEY_STORES_JSON" \
    --advanced-properties "$ADVANCED_PROPERTIES_JSON" \
    --runtime-support SUPPORTED \
    --runtime-identity AUTHENTICATED_PRINCIPAL \
    --related-resource "$RELATED_RESOURCE_JSON" \
    --wait-for-state SUCCEEDED \
    --query "data.resources[0].identifier" \
    --raw-output
)"

Confirm the connection ID:

echo "$IAM_USER_CONNECTION_ID"

Step 6: Validate the IAM Connection

Validate the connection before running SQL:

For this demo, make sure the OCI user running the validation is a member of the IAM group used in the database mapping, prod-db-support-readonly. Otherwise the token connection can validate the network and wallet path but still fail the IAM-to-database user mapping.

oci dbtools-runtime connection validate oracle-database \
  --connection-id "$IAM_USER_CONNECTION_ID"

A healthy response should indicate that the connection is correctly configured. It should also show OCI IAM external authentication as enabled.

Step 7: Run a SQL Check

Run a simple identity query:

export IDENTITY_CHECK_SQL="$(
  jq -nc '{
    type: "STANDARD",
    statementText:
      "select sys_context('\''userenv'\'', '\''current_schema'\'') as current_schema, sys_context('\''userenv'\'', '\''session_user'\'') as session_user, sys_context('\''userenv'\'', '\''authenticated_identity'\'') as authenticated_identity, sys_context('\''userenv'\'', '\''authentication_method'\'') as authentication_method from dual"
  }'
)"

oci dbtools-runtime connection execute-sql sync \
  --connection-id "$IAM_USER_CONNECTION_ID" \
  --request-input "$IDENTITY_CHECK_SQL"

For an IAM group mapping, expect the output to show:

The exact field names and casing depend on the database version and Database Tools runtime response shape, but this query is useful because it verifies the end-to-end identity path rather than only checking that the TCP connection works.

Troubleshooting

If validation fails, use the official Database Tools troubleshooting guide: https://docs.oracle.com/en-us/iaas/database-tools/doc/troubleshooting.html#GUID-167E8A13-F2B4-43B9-84B2-FE50F6DBEC90.

Cleanup

After testing, remove temporary resources that are no longer needed:

If this was only a test, remove the database user first while the admin setup connection still exists:

export DROP_IAM_USER_SQL="$(
  jq -nc '{
    type: "STANDARD",
    statementText: "DROP USER PROD_SUPPORT_RO"
  }'
)"

oci dbtools-runtime connection execute-sql sync \
  --connection-id "$ADMIN_CONNECTION_ID" \
  --request-input "$DROP_IAM_USER_SQL"

Then delete the Database Tools connections:

oci dbtools connection delete \
  --connection-id "$IAM_USER_CONNECTION_ID" \
  --force

oci dbtools connection delete \
  --connection-id "$ADMIN_CONNECTION_ID" \
  --force

If the private endpoint, Vault, or network resources are shared, do not delete them as part of this cleanup.

References

Closing Thoughts

The useful part of this setup is separation of concerns:

That gives you a cleaner operational model than sharing database passwords, especially for private databases where you already want access to flow through managed OCI services.
